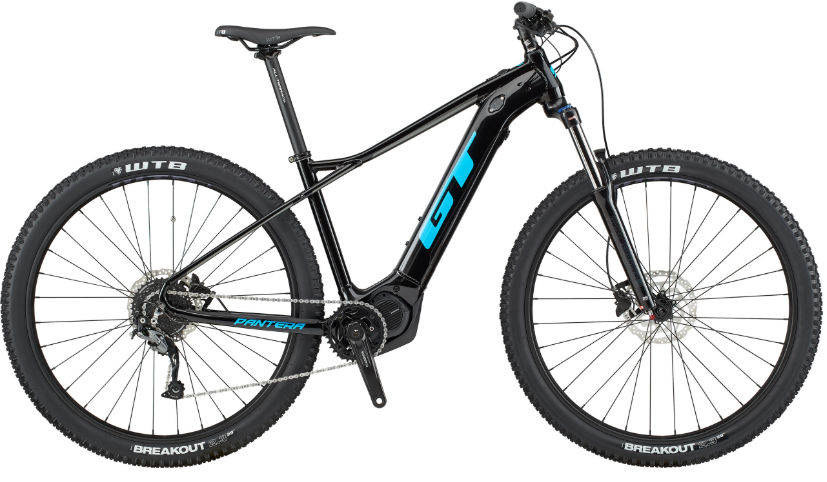

2019 GT Pantera E geometry
Full frame geometry for the 2019 GT Pantera E, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 640 | 446 | 72.7 | 68.5 | 115 | 645 | 485 | 800 | 55 | 723 | 450 | 1168 | 42 | 101 |
| M | 640 | 418 | 72.7 | 68.5 | 115 | 617 | 430 | 765 | 55 | 695 | 450 | 1140 | 42 | 101 |
| S | 640 | 393 | 72.7 | 68.5 | 115 | 592 | 380 | 737 | 55 | 670 | 450 | 1115 | 42 | 101 |
| XL | 648 | 472 | 72.7 | 68.5 | 124 | 674 | 540 | 829 | 55 | 753 | 450 | 1198 | 42 | 101 |
All measurements in millimetres unless marked (°) for angles.
