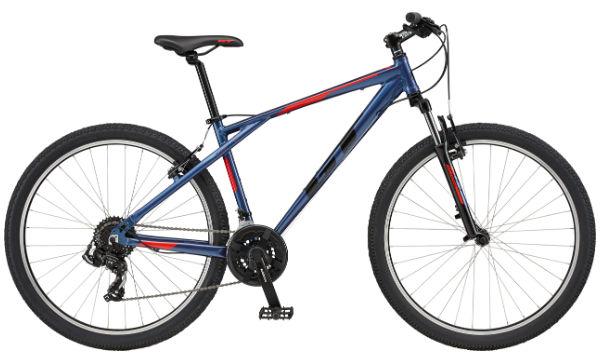

2019 GT Palomar AL geometry
Full frame geometry for the 2019 GT Palomar AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 575 | 390 | 72.7 | 69.5 | 90 | 569 | 355 | 651 | 45 | 435 | 1083 | 40 |
| S | 585 | 406 | 72.7 | 69.5 | 100 | 588 | 380 | 693 | 45 | 435 | 1083 | 40 |
| M | 594 | 430 | 72.7 | 69.5 | 110 | 615 | 430 | 735 | 45 | 435 | 1111 | 40 |
| L | 613 | 453 | 72.7 | 69.5 | 130 | 644 | 485 | 777 | 45 | 435 | 1141 | 40 |
| XL | 631 | 478 | 72.7 | 69.5 | 150 | 675 | 540 | 819 | 45 | 435 | 1173 | 40 |
All measurements in millimetres unless marked (°) for angles.
