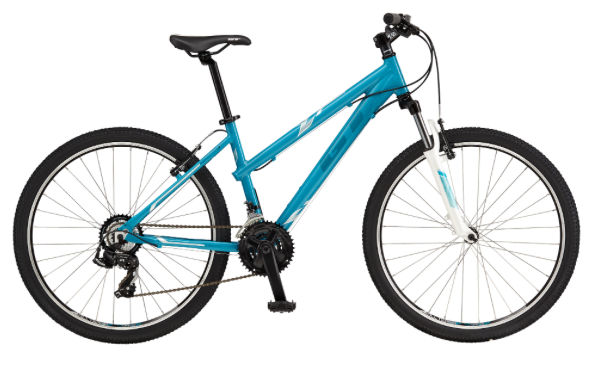

2017 GT Laguna geometry
Full frame geometry for the 2017 GT Laguna, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 505 | 385 | 74 | 70 | 110 | 528 | 356 | 560 | 40 | 602 | 436 | 1035 | 45 |
| M | 519 | 394 | 74 | 70 | 115 | 541 | 407 | 560 | 40 | 615 | 436 | 1048 | 45 |
All measurements in millimetres unless marked (°) for angles.
