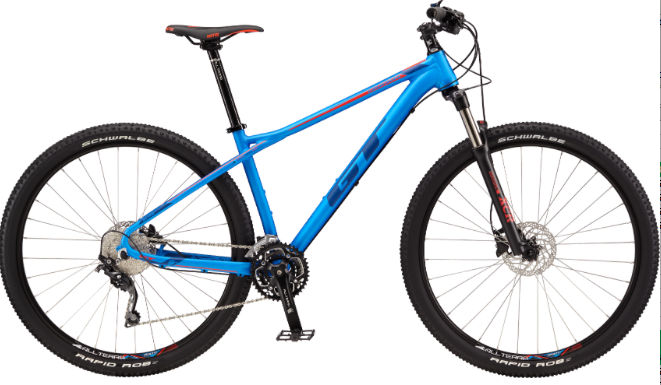

2017 GT Karakoram geometry
Full frame geometry for the 2017 GT Karakoram, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 607 | 430 | 73.5 | 69 | 95 | 610 | 380 | 708 | 65 | 696 | 455 | 1133 | 51 |
| L | 616 | 471 | 73.5 | 69 | 105 | 654 | 485 | 777 | 65 | 741 | 455 | 1178 | 51 |
| M | 616 | 451 | 73.5 | 69 | 105 | 634 | 430 | 746 | 65 | 721 | 455 | 1158 | 51 |
| XL | 630 | 491 | 73.5 | 69 | 120 | 678 | 540 | 819 | 65 | 766 | 455 | 1203 | 51 |
All measurements in millimetres unless marked (°) for angles.
