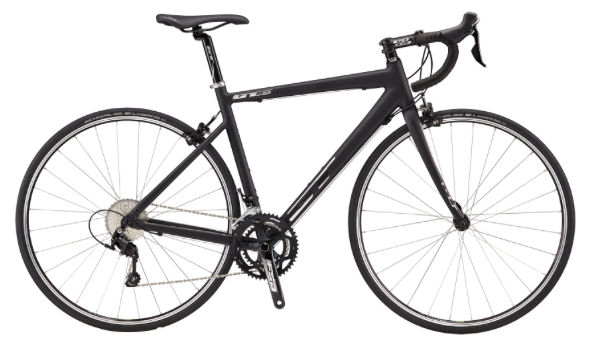

2017 GT GTS geometry
Full frame geometry for the 2017 GT GTS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/50 | 525 | 376 | 74 | 72 | 111 | 522 | 470 | 710 | 72 | 575 | 420 | 985 | 45 |
| S/52 | 536 | 379 | 74 | 72.5 | 121 | 533 | 490 | 728 | 72 | 577 | 420 | 987 | 45 |
| M/54 | 555 | 379 | 73.5 | 72.5 | 141 | 544 | 510 | 748 | 72 | 584 | 420 | 993 | 45 |
| L/56 | 572 | 389 | 73.5 | 72.5 | 161 | 559 | 530 | 769 | 70 | 599 | 420 | 1009 | 45 |
| XL/58 | 593 | 394 | 73 | 73 | 181 | 575 | 550 | 788 | 70 | 605 | 420 | 1015 | 45 |
| XXL/60 | 612 | 398 | 72.5 | 73 | 201 | 591 | 570 | 808 | 70 | 615 | 420 | 1025 | 45 |
All measurements in millimetres unless marked (°) for angles.
