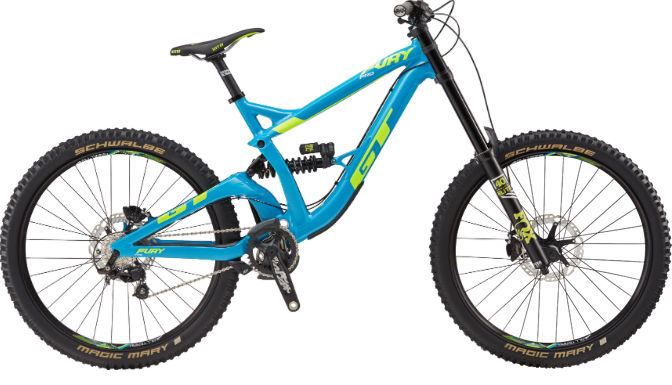

2017 GT Fury Pro geometry
Full frame geometry for the 2017 GT Fury Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 616 | 456 | 73 | 63 | 125 | 644 | 470 | 759 | 3 | 827 | 442 | 1269 | 52 |
| M | 616 | 430 | 73 | 63 | 125 | 618 | 460 | 759 | 3 | 801 | 442 | 1243 | 52 |
| S | 616 | 404 | 73 | 63 | 125 | 592 | 450 | 759 | 3 | 775 | 442 | 1217 | 52 |
| XS | 616 | 378 | 73 | 63 | 125 | 566 | 440 | 759 | 3 | 749 | 442 | 1191 | 52 |
All measurements in millimetres unless marked (°) for angles.
