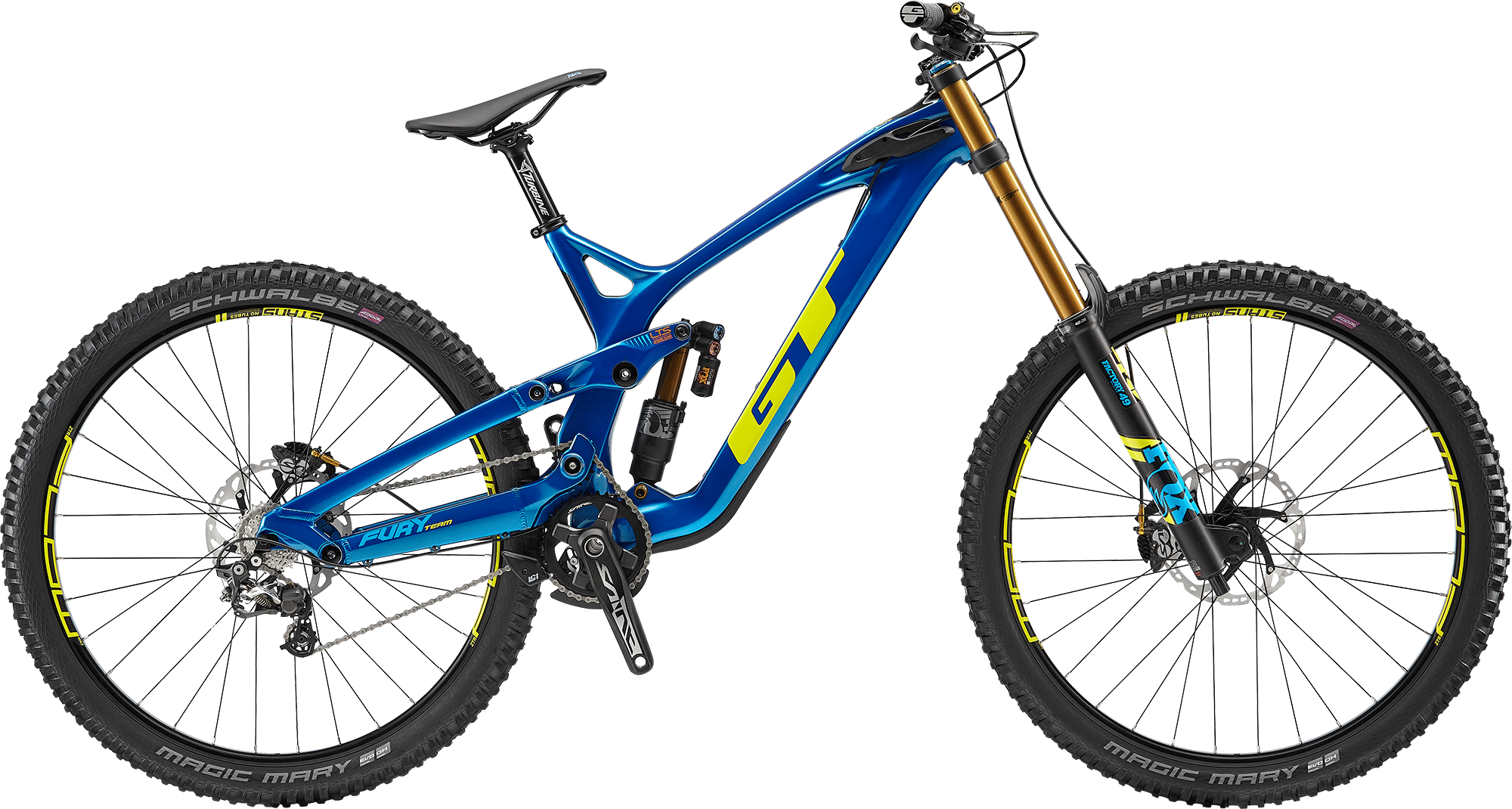

2019 GT Fury Carbon 29 geometry
Full frame geometry for the 2019 GT Fury Carbon 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L-High | 612 | 474 | 74.9 | 62.5 | 105 | 620 | 440 | 740 | 22 | 847 | 437 | 1285 | 58 |
| M-High | 613 | 449 | 74.9 | 62.5 | 105 | 595 | 420 | 720 | 22 | 824 | 437 | 1260 | 58 |
| S-High | 613 | 412 | 74.9 | 62.5 | 105 | 557 | 420 | 700 | 22 | 786 | 437 | 1222 | 58 |
| L-Low | 616 | 470 | 74.5 | 62 | 105 | 620 | 440 | 740 | 28 | 847 | 440 | 1284 | 58 |
| M-Low | 616 | 445 | 74.5 | 62 | 105 | 595 | 420 | 720 | 28 | 824 | 440 | 1259 | 58 |
| S-Low | 616 | 407 | 74.5 | 62 | 105 | 557 | 420 | 700 | 28 | 786 | 440 | 1221 | 58 |
All measurements in millimetres unless marked (°) for angles.
