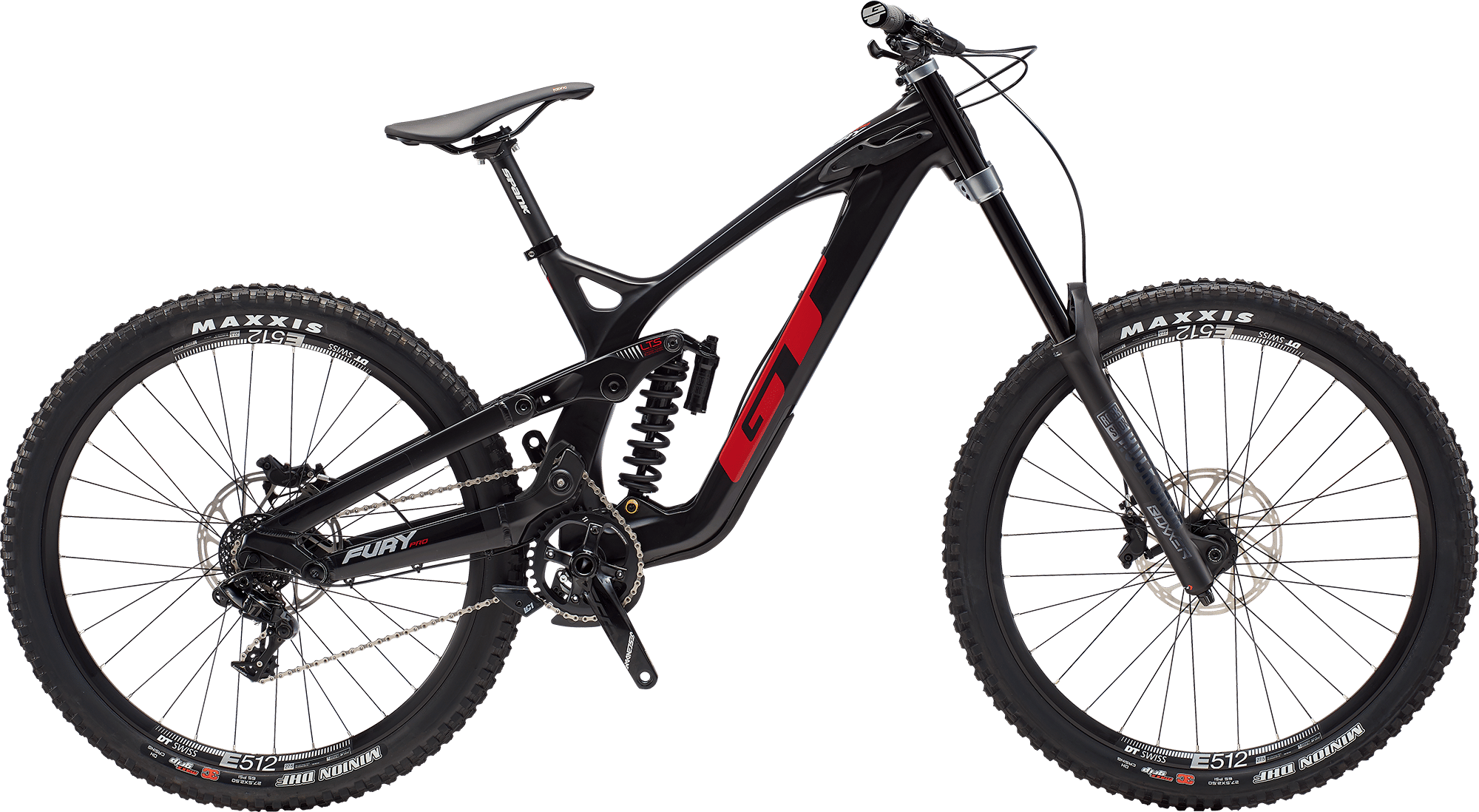

2019 GT Fury Carbon 27.5 geometry
Full frame geometry for the 2019 GT Fury Carbon 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L-High | 612 | 475 | 74.9 | 62.5 | 105 | 620 | 440 | 740 | 3 | 851 | 431 | 1282 | 58 |
| M-High | 612 | 450 | 74.9 | 62.5 | 105 | 595 | 420 | 720 | 3 | 826 | 431 | 1257 | 58 |
| S-High | 612 | 412 | 74.9 | 62.5 | 105 | 557 | 420 | 700 | 3 | 788 | 431 | 1219 | 58 |
| L-Low | 616 | 470 | 74.5 | 62 | 105 | 620 | 440 | 740 | 10 | 851 | 434 | 1285 | 58 |
| M-Low | 616 | 445 | 74.5 | 62 | 105 | 595 | 420 | 720 | 10 | 826 | 434 | 1260 | 58 |
| S-Low | 616 | 407 | 74.5 | 62 | 105 | 557 | 420 | 700 | 10 | 788 | 434 | 1222 | 58 |
All measurements in millimetres unless marked (°) for angles.
