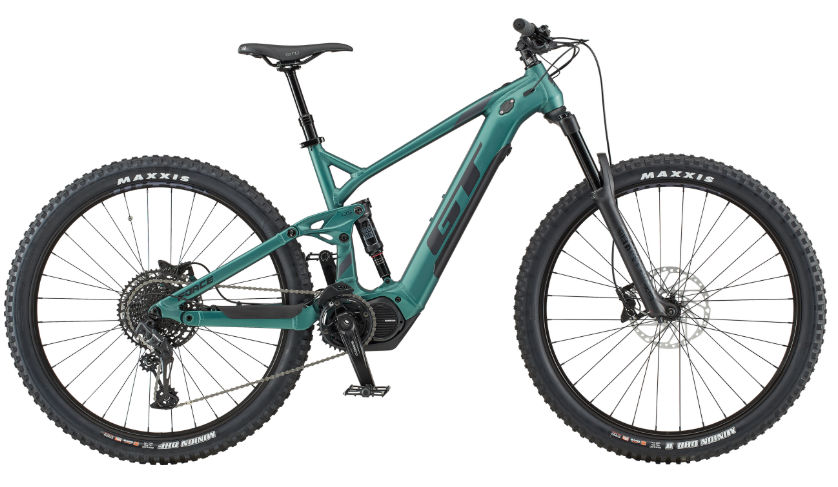

2019 GT Force E geometry
Full frame geometry for the 2019 GT Force E, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 617 | 475 | 76 | 65 | 115 | 588 | 480 | 755 | 30 | 806 | 455 | 1259 | 51 | 120 |
| M | 617 | 450 | 76 | 65 | 115 | 562 | 450 | 739 | 30 | 781 | 455 | 1234 | 51 | 120 |
| S | 617 | 425 | 76 | 65 | 115 | 539 | 430 | 735 | 30 | 756 | 455 | 1210 | 51 | 120 |
| XL | 626 | 500 | 76 | 65 | 124 | 617 | 510 | 776 | 30 | 835 | 455 | 1288 | 51 | 120 |
All measurements in millimetres unless marked (°) for angles.
