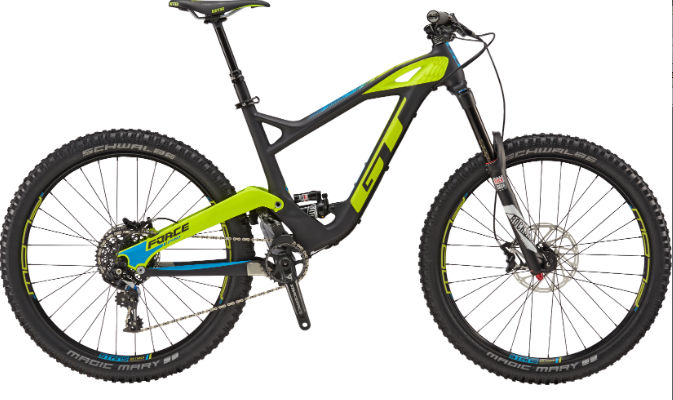

2017 GT Force Carbon geometry
Full frame geometry for the 2017 GT Force Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 585 | 392 | 73.3 | 66.7 | 98 | 567 | 425 | 755 | 5 | 688 | 443 | 1131 | 43 |
| M | 597 | 425 | 73.3 | 66.7 | 114 | 600 | 455 | 766 | 5 | 723 | 443 | 1166 | 43 |
| L | 612 | 449 | 73.3 | 66.7 | 130 | 629 | 480 | 778 | 5 | 754 | 443 | 1197 | 43 |
| XL | 627 | 473 | 73.3 | 66.7 | 147 | 657 | 505 | 798 | 5 | 784 | 443 | 1229 | 43 |
All measurements in millimetres unless marked (°) for angles.
