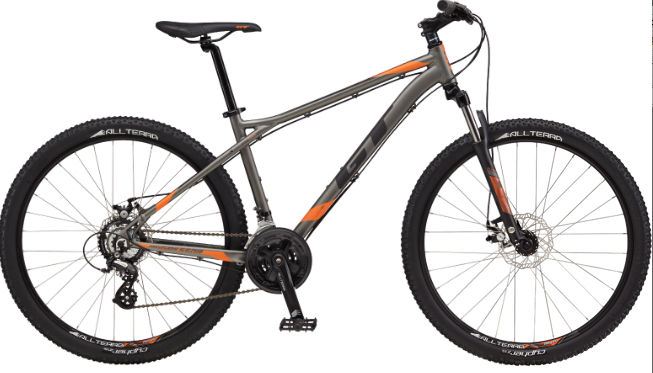

2017 GT Aggressor geometry
Full frame geometry for the 2017 GT Aggressor, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 571 | 391 | 72.7 | 69.5 | 90 | 569 | 569 | 727 | 45 | 634 | 435 | 1065 | 42 |
| S | 580 | 407 | 72.7 | 69.5 | 100 | 588 | 588 | 727 | 45 | 654 | 435 | 1085 | 42 |
| M | 589 | 431 | 72.7 | 69.5 | 110 | 615 | 615 | 762 | 45 | 681 | 435 | 1112 | 42 |
| L | 608 | 455 | 72.7 | 69.5 | 130 | 644 | 644 | 804 | 45 | 711 | 435 | 1143 | 42 |
| XL | 627 | 480 | 72.7 | 69.5 | 150 | 675 | 675 | 845 | 45 | 744 | 435 | 1175 | 42 |
All measurements in millimetres unless marked (°) for angles.
