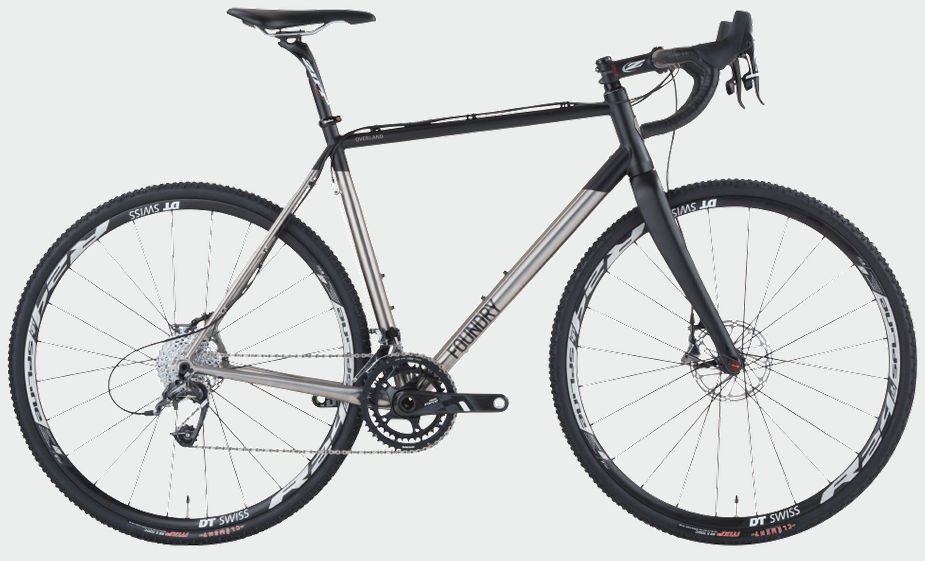

2015 Foundry Overland geometry
Full frame geometry for the 2015 Foundry Overland, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 543 | 369 | 74.5 | 71 | 120 | 520 | 520 | 731 | 68 | 425 | 1000 | 45 | 73 |
| S | 564 | 384 | 74.5 | 71.5 | 140 | 540 | 540 | 783 | 68 | 425 | 1017 | 45 | 69 |
| M | 585 | 392 | 74 | 72 | 160 | 560 | 560 | 795 | 68 | 425 | 1027 | 45 | 66 |
| L | 606 | 401 | 73.5 | 72.5 | 180 | 580 | 580 | 825 | 68 | 425 | 1037 | 45 | 63 |
| XL | 625 | 415 | 73.5 | 72.5 | 200 | 600 | 600 | 844 | 68 | 425 | 1057 | 45 | 63 |
All measurements in millimetres unless marked (°) for angles.
