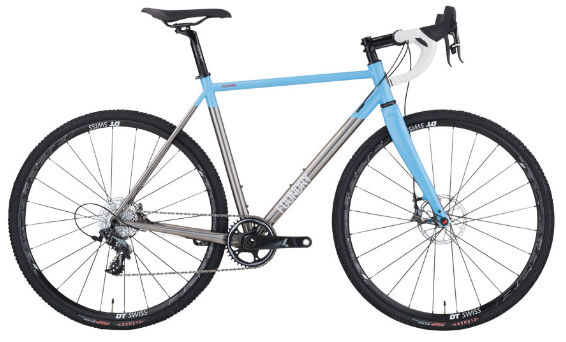

2015 Foundry Flyover geometry
Full frame geometry for the 2015 Foundry Flyover, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 517 | 374 | 75.5 | 70.3 | 90 | 508 | 490 | 739 | 67 | 587 | 425 | 1003 | 45 | 74 |
| XS | 535 | 379 | 74.5 | 71 | 108 | 528 | 530 | 769 | 65 | 592 | 425 | 1009 | 45 | 70 |
| S | 557 | 385 | 74 | 72 | 128 | 545 | 545 | 786 | 65 | 596 | 425 | 1012 | 45 | 64 |
| M | 576 | 389 | 73.5 | 72 | 148 | 560 | 560 | 801 | 65 | 606 | 425 | 1023 | 45 | 64 |
| L | 597 | 393 | 73 | 72.5 | 168 | 575 | 575 | 818 | 65 | 611 | 425 | 1027 | 45 | 61 |
| XL | 607 | 399 | 72.5 | 72.5 | 178 | 590 | 590 | 830 | 65 | 620 | 425 | 1036 | 45 | 61 |
All measurements in millimetres unless marked (°) for angles.
