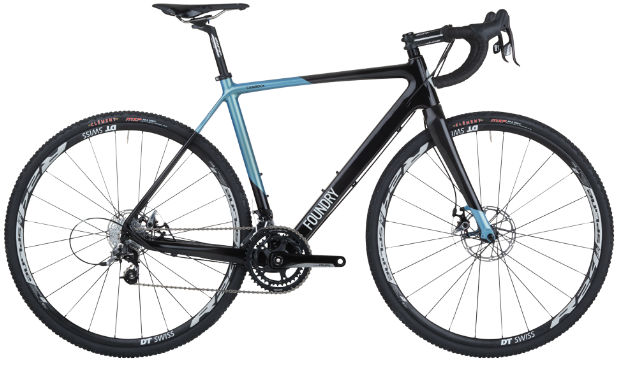

2015 Foundry Camrock geometry
Full frame geometry for the 2015 Foundry Camrock, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 517 | 381 | 75 | 70 | 100 | 520 | 490 | 729 | 67 | 597 | 425 | 1013 | 45 | 78 |
| S | 542 | 385 | 74.5 | 71.5 | 120 | 535 | 515 | 754 | 67 | 595 | 425 | 1011 | 45 | 68 |
| M | 562 | 385 | 73.5 | 72 | 140 | 550 | 540 | 776 | 65 | 596 | 425 | 1012 | 45 | 65 |
| L | 583 | 387 | 73 | 72.5 | 160 | 565 | 565 | 799 | 65 | 601 | 425 | 1017 | 45 | 62 |
| XL | 601 | 395 | 73 | 73 | 180 | 580 | 590 | 822 | 65 | 611 | 425 | 1027 | 45 | 59 |
All measurements in millimetres unless marked (°) for angles.
