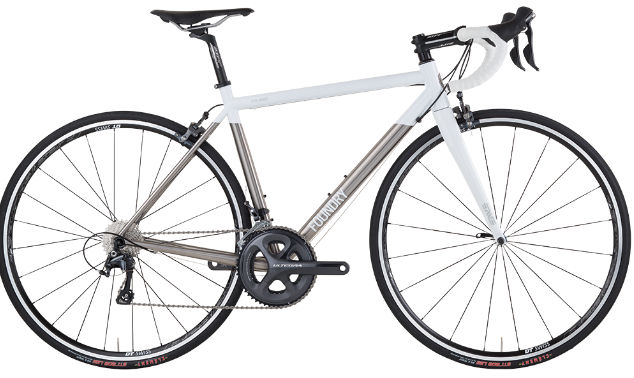

2015 Foundry Chilkoot geometry
Full frame geometry for the 2015 Foundry Chilkoot, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 509 | 383 | 75.5 | 71.5 | 110 | 515 | 460 | 716 | 72 | 579 | 407 | 976 | 43 | 66 |
| XS | 522 | 385 | 74.5 | 72.5 | 120 | 530 | 480 | 733 | 72 | 577 | 409 | 975 | 43 | 61 |
| S | 541 | 390 | 74 | 73 | 140 | 545 | 500 | 754 | 70 | 583 | 411 | 984 | 43 | 58 |
| M | 560 | 394 | 73.5 | 73 | 160 | 560 | 520 | 773 | 70 | 593 | 411 | 994 | 43 | 58 |
| L | 579 | 398 | 73 | 73.5 | 180 | 575 | 545 | 797 | 68 | 598 | 413 | 1002 | 43 | 55 |
| XL | 588 | 404 | 72.5 | 73.5 | 190 | 590 | 570 | 816 | 68 | 607 | 413 | 1011 | 43 | 55 |
All measurements in millimetres unless marked (°) for angles.
