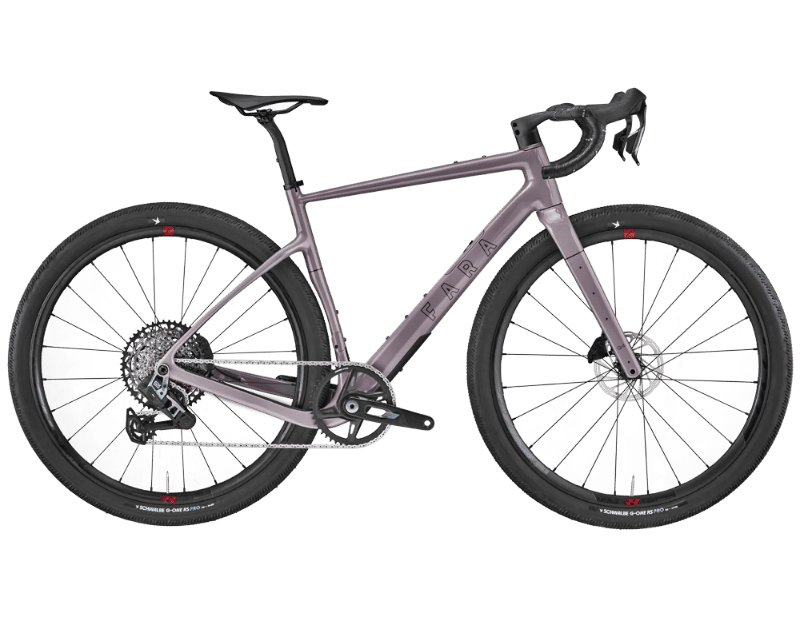

2025 Fara Gr4 geometry
Full frame geometry for the 2025 Fara Gr4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 550 | 385 | 75 | 71 | 115 | 532 | 445 | 731 | 80 | 610 | 425 | 1022 | 55 | 66 |
| 53 | 570 | 395 | 74 | 71.2 | 135 | 558 | 480 | 762 | 80 | 625 | 425 | 1037 | 55 | 65 |
| 56 | 590 | 405 | 74 | 71.2 | 157 | 574 | 520 | 798 | 80 | 644 | 425 | 1054 | 55 | 65 |
| 59 | 610 | 416 | 74 | 71.2 | 177 | 591 | 550 | 824 | 80 | 659 | 425 | 1072 | 55 | 65 |
All measurements in millimetres unless marked (°) for angles.
