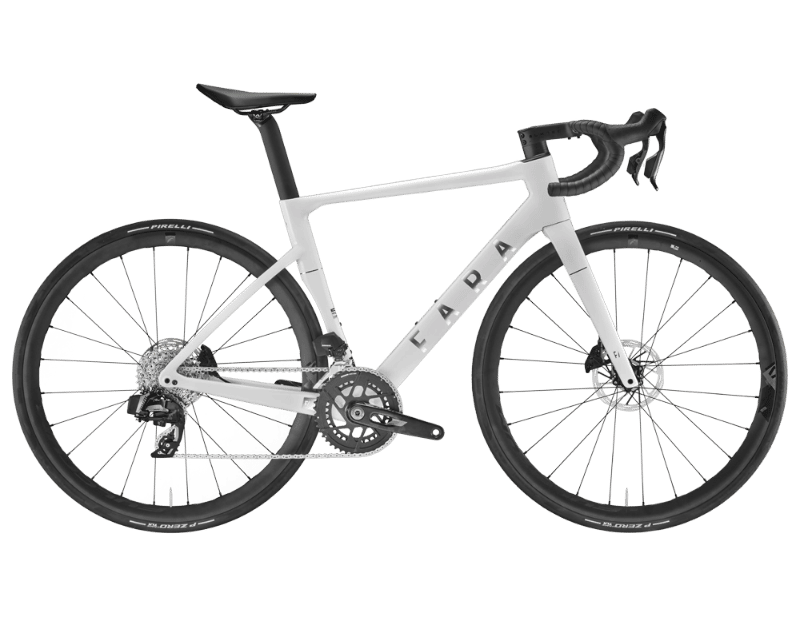

2025 Fara F/Road geometry
Full frame geometry for the 2025 Fara F/Road, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 505 | 372 | 75 | 71 | 108 | 512 | 446 | 727 | 568 | 408 | 976 |
| 51 | 523 | 378 | 74 | 72 | 126 | 528 | 475 | 751 | 578 | 408 | 986 |
| 54 | 545 | 386 | 73 | 73 | 144 | 547 | 482 | 768 | 584 | 410 | 994 |
| 56 | 567 | 394 | 73 | 73 | 166 | 567 | 531 | 804 | 587 | 410 | 997 |
| 59 | 596 | 406 | 73 | 73 | 195 | 588 | 562 | 834 | 608 | 410 | 1018 |
All measurements in millimetres unless marked (°) for angles.
