2025 Fara · RD

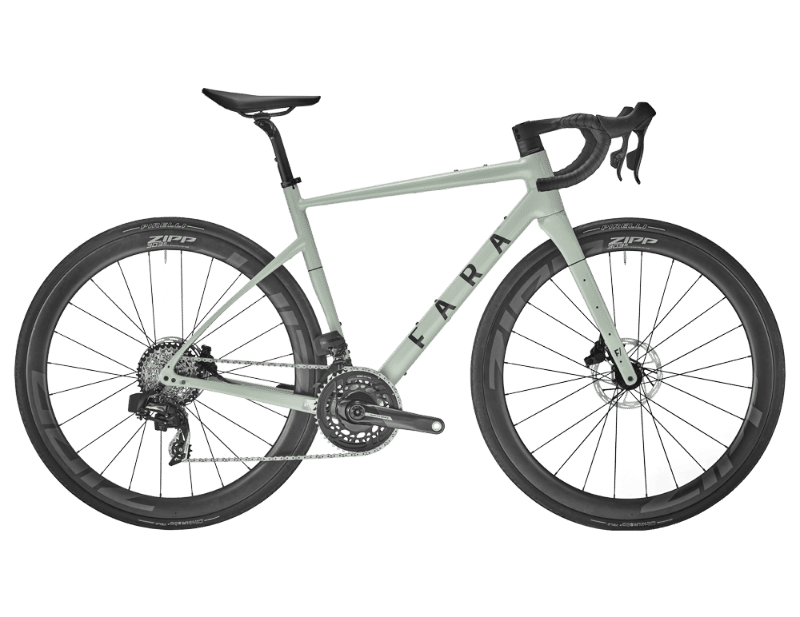

2025 Fara F/All-Road geometry
Full frame geometry for the 2025 Fara F/All-Road, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 530 | 369 | 74 | 71 | 115 | 521 | 487 | 728 | 590 | 415 | 993 |
| 53 | 555 | 377 | 73 | 72 | 137 | 547 | 517 | 762 | 592 | 415 | 996 |
| 56 | 583 | 386 | 73 | 72 | 166 | 564 | 557 | 798 | 609 | 415 | 1013 |
| 59 | 610 | 395 | 73 | 72 | 194 | 581 | 585 | 827 | 626 | 415 | 1030 |
All measurements in millimetres unless marked (°) for angles.
