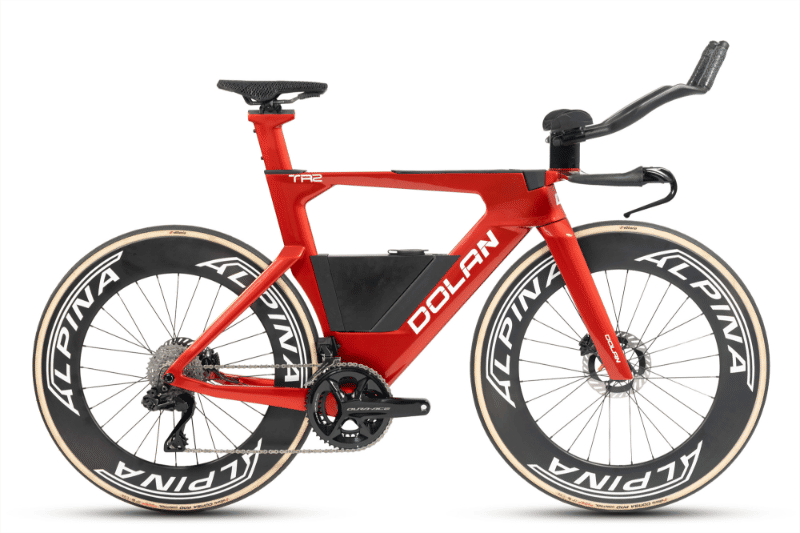

2025 Dolan TR2 geometry
Full frame geometry for the 2025 Dolan TR2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 49 | 522 | 380 | 72.5 | 66 | 492 | 535 | 572 | 410 | 969 |
| 52 | 524 | 405 | 72.5 | 67.5 | 517 | 537 | 597 | 410 | 994 |
| 54 | 535 | 426 | 72.5 | 83 | 560 | 555 | 622 | 410 | 1019 |
| 56 | 559 | 455 | 72.5 | 104 | 574 | 572 | 658 | 410 | 1055 |
| 58 | 574 | 470 | 72.5 | 120 | 593 | 588 | 678 | 410 | 1075 |
All measurements in millimetres unless marked (°) for angles.
