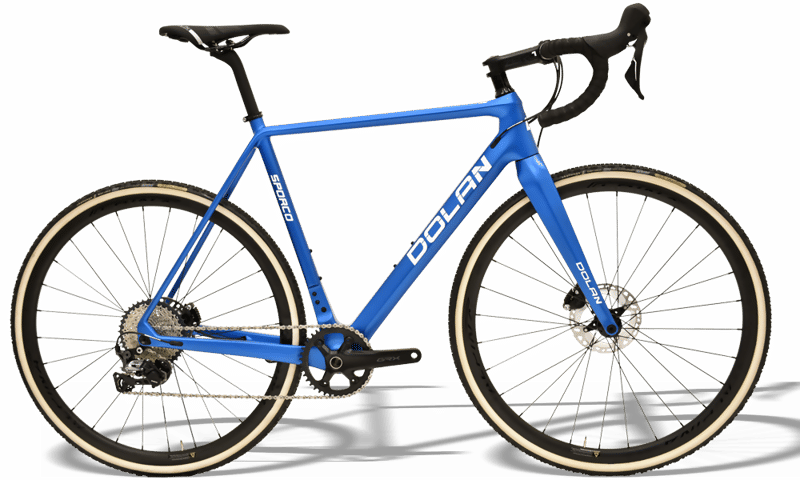

2022 Dolan Sporco geometry
Full frame geometry for the 2022 Dolan Sporco, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) |
|---|---|---|---|---|---|---|---|
| XS | 518.2 | 375 | 75.5 | 70.5 | 100 | 509 | 500 |
| S | 529.5 | 380 | 74.5 | 71 | 110 | 527 | 520 |
| M | 554 | 382 | 74 | 71.5 | 135 | 541 | 540 |
| L | 566.4 | 386 | 73 | 72 | 145 | 559 | 560 |
| XL | 580.6 | 391 | 73 | 72 | 160 | 568.5 | 580 |
| XXL | 604.4 | 398 | 73 | 72 | 185 | 582.2 | 600 |
All measurements in millimetres unless marked (°) for angles.
