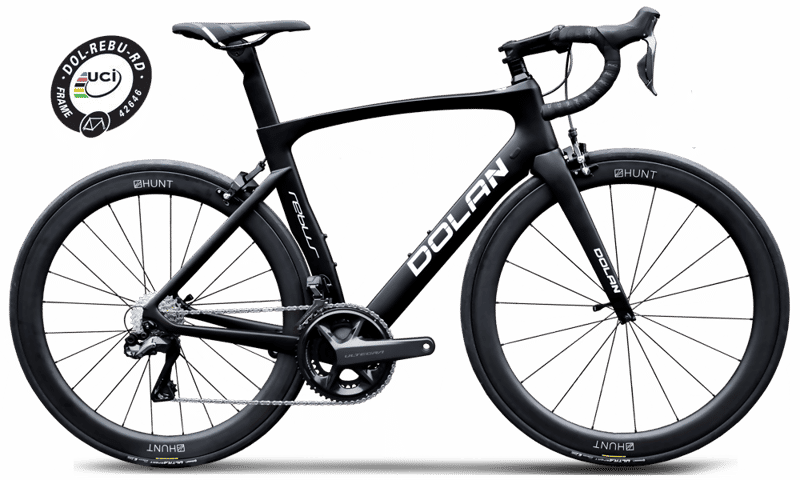

2022 Dolan Rebus geometry
Full frame geometry for the 2022 Dolan Rebus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) |
|---|---|---|---|---|---|---|---|
| SML | 521.1 | 375.6 | 74 | 72 | 120 | 525 | 450 |
| MED | 551.5 | 381.5 | 73.5 | 72.5 | 150 | 544.9 | 499.7 |
| LRG | 578.7 | 388.6 | 73.5 | 73.5 | 175 | 560 | 540 |
| X-LRG | 602.7 | 401.5 | 73.5 | 73.5 | 200 | 580.4 | 569.6 |
All measurements in millimetres unless marked (°) for angles.
