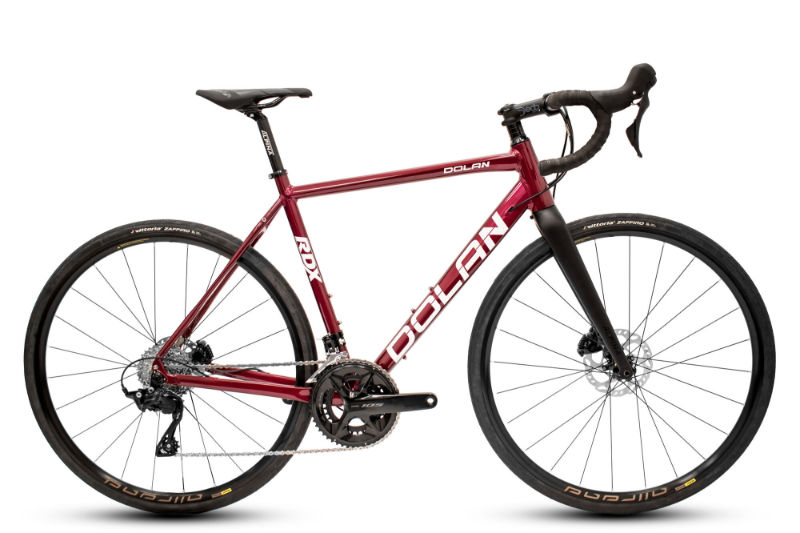

2025 Dolan RDX geometry
Full frame geometry for the 2025 Dolan RDX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) |
|---|---|---|---|---|---|---|---|
| 49 | 535.9 | 376.4 | 74 | 70 | 120 | 520 | 490 |
| 52 | 558.7 | 375 | 74 | 71 | 140 | 535 | 520 |
| 54 | 568.1 | 376.4 | 73 | 71 | 150 | 550 | 540 |
| 56 | 589 | 384.9 | 73 | 72 | 170 | 565 | 560 |
| 58 | 608.1 | 394.2 | 73 | 72 | 190 | 580 | 580 |
All measurements in millimetres unless marked (°) for angles.
