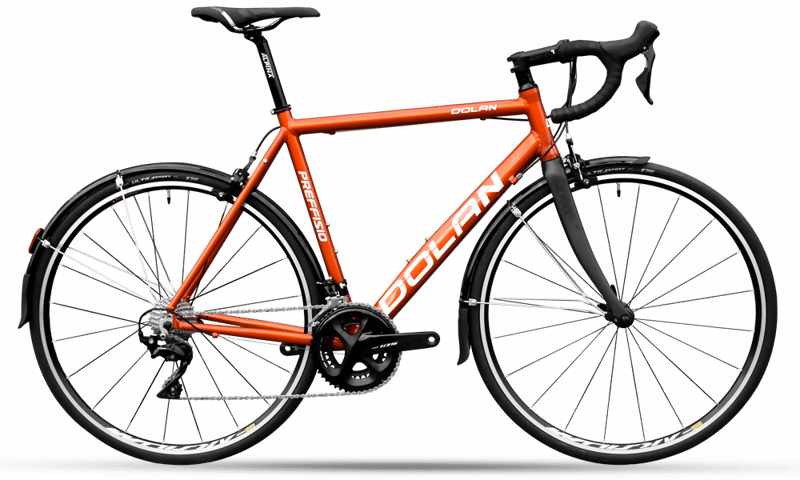

2022 Dolan Preffisio geometry
Full frame geometry for the 2022 Dolan Preffisio, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| XXS | 487 | 394 | 76 | 71 | 95 | 511 | 450 | 996.3 |
| XS | 499 | 396.4 | 75 | 72 | 105 | 535 | 500 | 1002.2 |
| SML | 513 | 396.9 | 75 | 72 | 120 | 540 | 520 | 1004.6 |
| MED | 540.7 | 400.9 | 74 | 73 | 140 | 550 | 540 | 1004.9 |
| LRG | 559.8 | 402.4 | 74 | 73 | 160 | 560 | 560 | 1006.2 |
| X-LRG | 578.9 | 404.2 | 74 | 73 | 180 | 570 | 580 | 1016.4 |
| XX-LRG | 598 | 404.5 | 74 | 73 | 200 | 580 | 600 | 1024.5 |
All measurements in millimetres unless marked (°) for angles.
