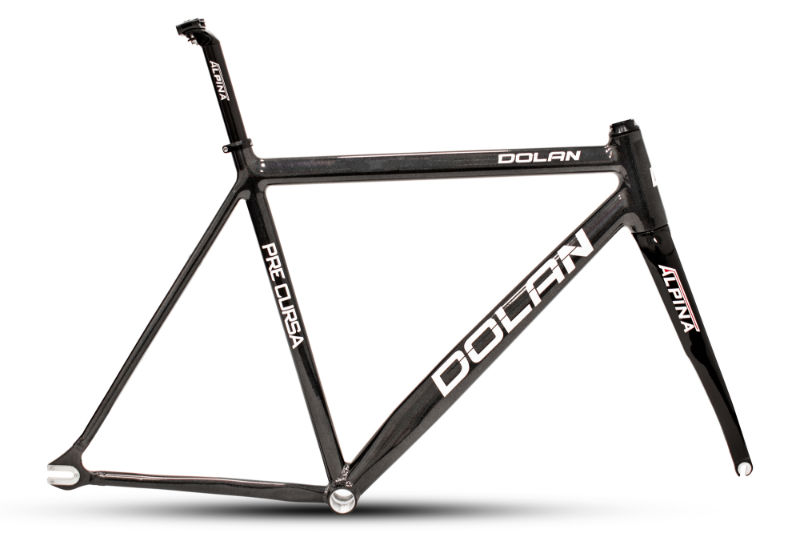

2025 Dolan Pre Cursa 2.0 geometry
Full frame geometry for the 2025 Dolan Pre Cursa 2.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) |
|---|---|---|---|---|---|
| 45 | 487.5 | 384.2 | 76 | 71 | 498 |
| 50 | 503 | 396 | 75 | 73 | 525.7 |
| 52 | 516.9 | 400.8 | 75 | 73 | 535 |
| 54 | 539.5 | 408 | 75 | 74 | 547.2 |
| 56 | 561.3 | 411.6 | 74 | 75 | 555 |
| 58 | 580.6 | 412.8 | 74 | 75 | 570 |
| 60 | 599.9 | 444.9 | 74 | 75 | 608.8 |
All measurements in millimetres unless marked (°) for angles.
