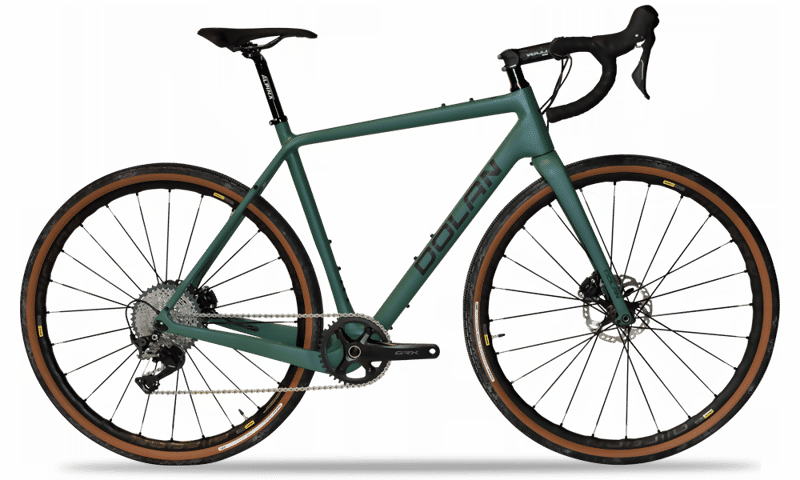

2022 Dolan GXC geometry
Full frame geometry for the 2022 Dolan GXC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Seat tube (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|
| X-SML | 541 | 366 | 74.5 | 70.5 | 525 | 490 | 120 |
| SML | 560 | 370 | 74 | 71 | 535 | 520 | 140 |
| MED | 572 | 371 | 73 | 71.5 | 545 | 540 | 150 |
| LRG | 592 | 380 | 73 | 72 | 560 | 560 | 170 |
| X-LRG | 609 | 383 | 72.5 | 72 | 575 | 580 | 190 |
| XX-LRG | 624 | 404.2 | 73 | 72 | 595 | 610 | 210 |
All measurements in millimetres unless marked (°) for angles.
