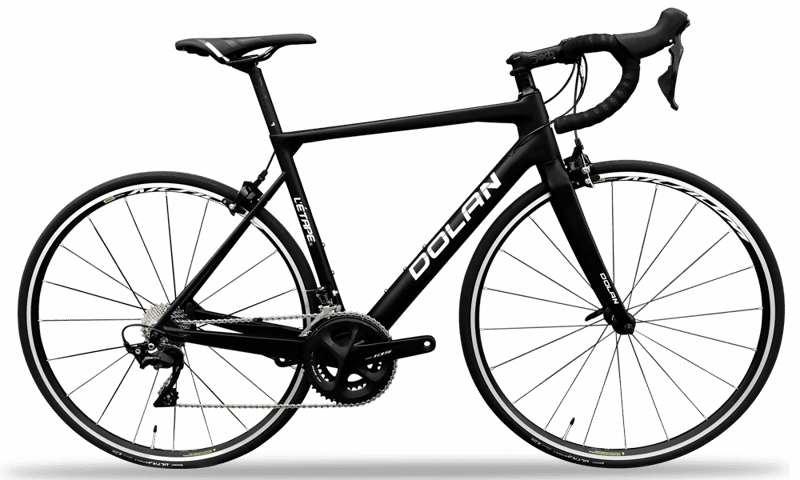

2022 Dolan Etape SL geometry
Full frame geometry for the 2022 Dolan Etape SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) |
|---|---|---|---|---|---|---|---|
| XSML | 504 | 365 | 74.5 | 70.5 | 100 | 505 | 430 |
| SML | 530 | 378 | — | 72.5 | 120 | 530 | 467 |
| MED | 545 | 383 | 73.5 | 73 | 140 | 545 | 498 |
| LRG | 565 | 388 | 73 | 73 | 160 | 560 | 518 |
| XLRG | 584 | 397 | 73 | 73 | 180 | 575 | 537 |
All measurements in millimetres unless marked (°) for angles.
