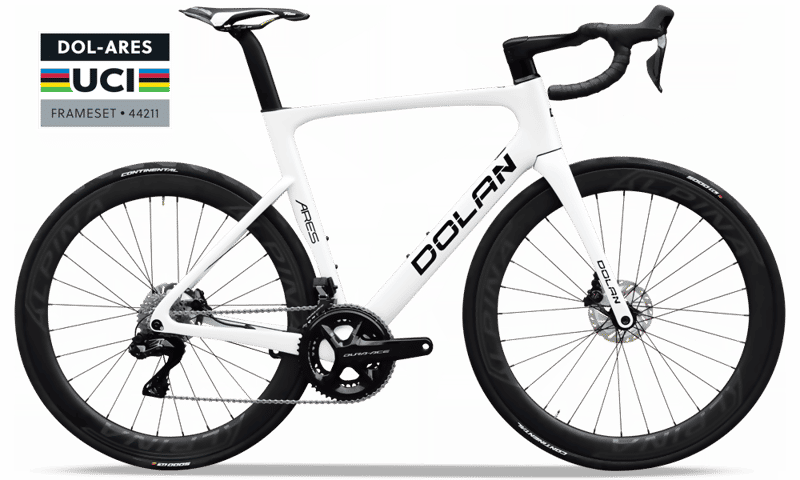

2022 Dolan Ares geometry
Full frame geometry for the 2022 Dolan Ares, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) |
|---|---|---|---|---|---|---|---|
| XS | 518 | 372 | 75 | 71.5 | 105 | 510 | 470 |
| S | 530 | 378 | 74 | 72.5 | 115 | 530 | 500 |
| M | 552 | 382 | 74 | 73 | 135 | 540 | 520 |
| L | 572 | 393 | 73.5 | 73.5 | 155 | 562 | 540 |
| XL | 596 | 401 | 73.5 | 73.5 | 180 | 577 | 560 |
All measurements in millimetres unless marked (°) for angles.
