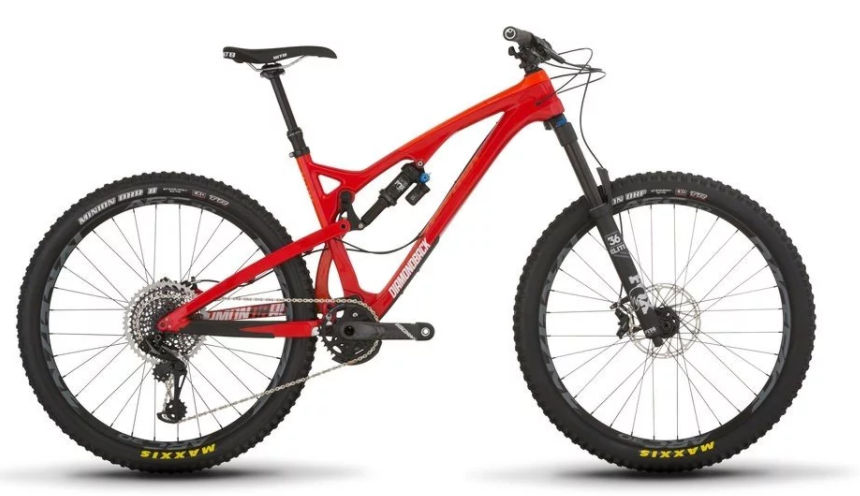

2017 Diamondback Release Carbon geometry
Full frame geometry for the 2017 Diamondback Release Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 584 | 406 | 73 | 66 | 100 | 585 | 394 | 739 | 14 | 425 | 1133 | 44 |
| M | 597 | 429 | 73 | 66 | 110 | 610 | 432 | 740 | 14 | 425 | 1160 | 44 |
| L | 603 | 451 | 73 | 66 | 120 | 635 | 483 | 743 | 14 | 425 | 1186 | 44 |
| XL | 612 | 473 | 73 | 66 | 130 | 660 | 533 | 749 | 14 | 425 | 1213 | 44 |
All measurements in millimetres unless marked (°) for angles.
