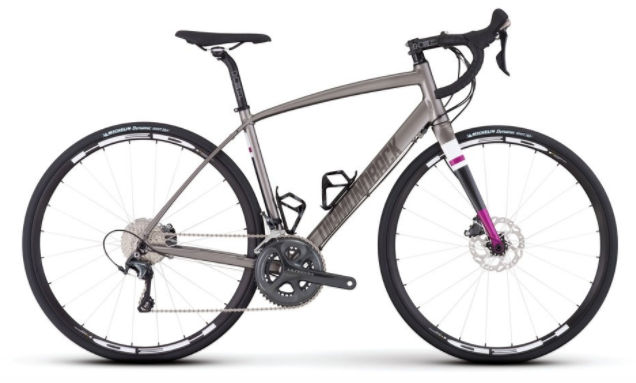

2017 Diamondback Airen geometry
Full frame geometry for the 2017 Diamondback Airen, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 528 | 363 | 75.5 | 70.5 | 120 | 500 | 420 | 716 | 72 | 415 | 984 | 48 |
| XS | 539 | 370 | 75 | 71 | 130 | 515 | 440 | 734 | 72 | 415 | 990 | 48 |
| S | 562 | 369 | 74.5 | 72 | 150 | 525 | 460 | 757 | 72 | 415 | 987 | 48 |
| M | 586 | 371 | 74 | 72 | 175 | 540 | 480 | 777 | 72 | 415 | 997 | 48 |
| L | 605 | 376 | 73.5 | 72.5 | 195 | 550 | 500 | 800 | 72 | 415 | 1003 | 48 |
All measurements in millimetres unless marked (°) for angles.
