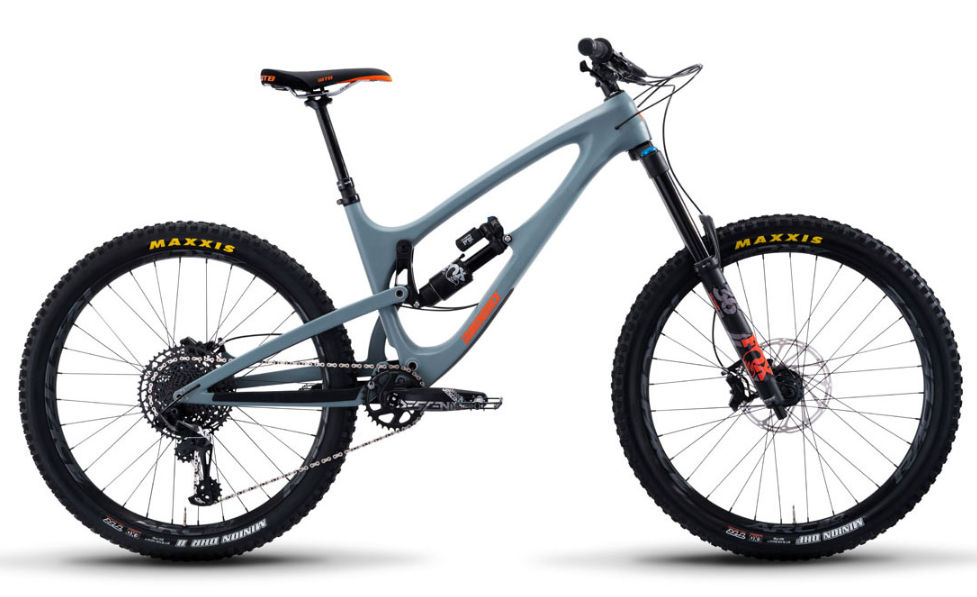

2019 Diamondback Misson Carbon geometry
Full frame geometry for the 2019 Diamondback Misson Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 596 | 431 | 75.5 | 64 | 100 | 585 | 380 | 656 | 10 | 430 | 1190 |
| M | 605 | 453 | 75.5 | 64 | 110 | 610 | 420 | 675 | 10 | 430 | 1218 |
| L | 614 | 476 | 75.5 | 64 | 120 | 635 | 457 | 693 | 10 | 430 | 1250 |
All measurements in millimetres unless marked (°) for angles.
