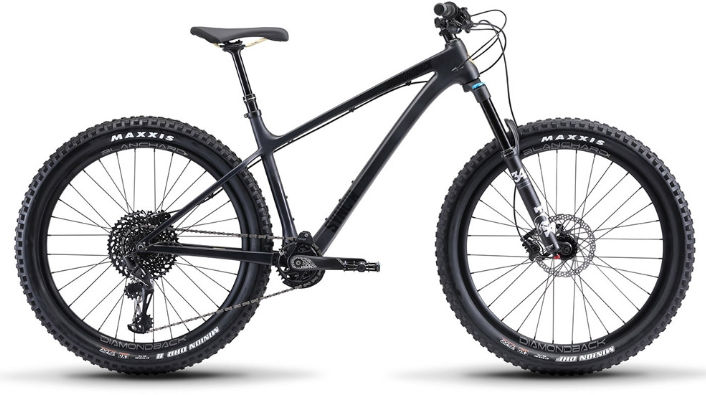

2019 Diamondback Sync'r Carbon geometry
Full frame geometry for the 2019 Diamondback Sync'r Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| SM | 591 | 415 | 74 | 66 | 105 | 585 | 400 | 50 | 435 | 1138 |
| M | 600 | 438 | 74 | 66 | 115 | 610 | 435 | 50 | 435 | 1165 |
| L | 610 | 455 | 74 | 66 | 125 | 630 | 485 | 50 | 435 | 1185 |
| XL | 620 | 472 | 74 | 66 | 135 | 650 | 535 | 50 | 435 | 1204 |
All measurements in millimetres unless marked (°) for angles.
