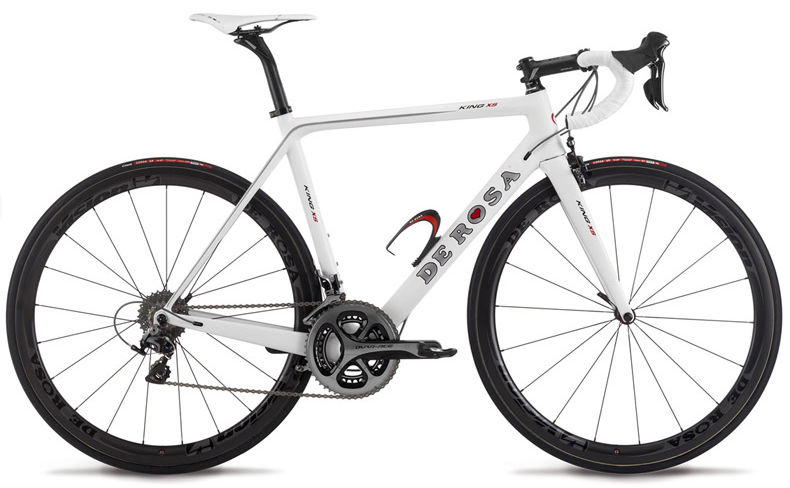

2014 De Rosa King XS geometry

Name: 2014 De Rosa King XS
Brand: De Rosa

Full frame geometry for the 2014 De Rosa King XS, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
46.3	501	372	75.3	70	110	505	417	68	580	405	975	43	76
49.2	504	370	75	70.5	110	507	450	68	573	402	965	43	73
50.3	515	380	75	71.5	117	519	470	68	576	402	968	43	66
51.6	526	387	74.4	72.4	126	534	490	68	579	404	973	43	61
52.6	535	390	73.9	72.5	134	545	510	71	583	405	977	43	60
53.8	545	393	73.5	72.7	144	555	530	71	586	407	982	43	59
55.2	557	395	73	72.8	156	565	550	71	591	409	990	43	58
56.7	570	397	72.6	72.8	170	575	570	71	597	410	997	43	58
58.8	590	405	72.6	73	190	589	590	71	609	410	1009	43	57

All measurements in millimetres unless marked (°) for angles.
