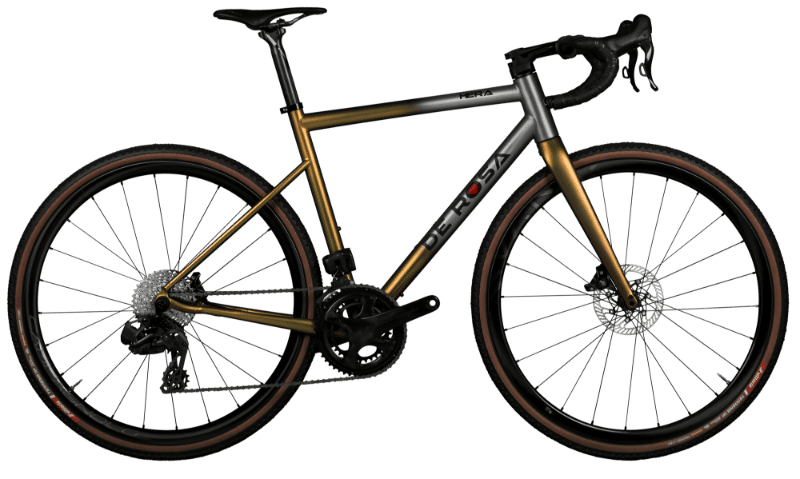

2026 De Rosa Hera geometry
Full frame geometry for the 2026 De Rosa Hera, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 49 | 536 | 366 | 73.5 | 125 | 525 | 67 | 593 | 435 |
| 52 | 557 | 369 | 73.5 | 145 | 535 | 67 | 601 | 435 |
| 54 | 568 | 371 | 73 | 155 | 545 | 67 | 601 | 435 |
| 56 | 589 | 379 | 73 | 175 | 560 | 67 | 610 | 435 |
| 58 | 608 | 382 | 72.5 | 195 | 575 | 67 | 620 | 435 |
All measurements in millimetres unless marked (°) for angles.
