2020 De Rosa · RD

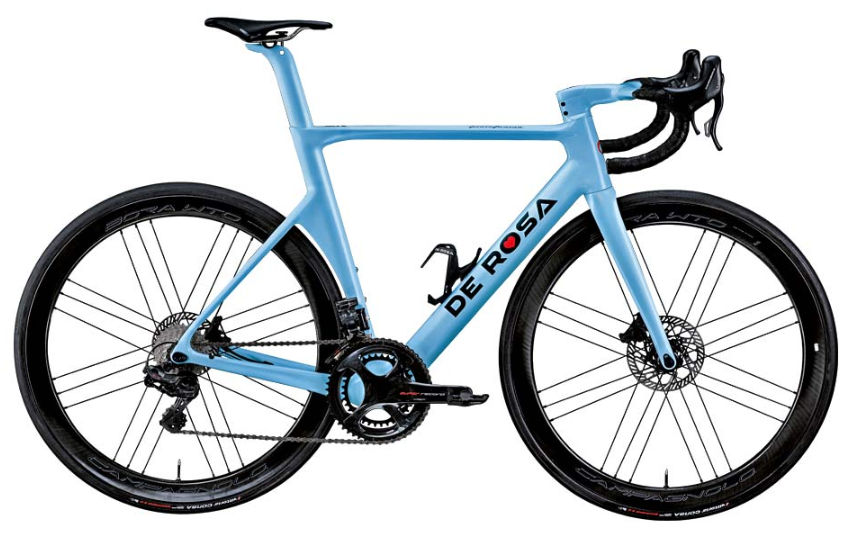

2020 De Rosa SK Pininfarina geometry
Full frame geometry for the 2020 De Rosa SK Pininfarina, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 46 | 478 | 369 | 74.6 | 70.7 | 82 | 503 | 70 | 396 |
| 48 | 496 | 374 | 74.3 | 70.9 | 100 | 516 | 70 | 396 |
| 50 | 514 | 379 | 74 | 71.2 | 118 | 528 | 70 | 398 |
| 52 | 532 | 384 | 73.7 | 71.4 | 136 | 541 | 70 | 398 |
| 54 | 550 | 389 | 73.4 | 72.7 | 148 | 553 | 70 | 400 |
| 56 | 568 | 394 | 73.1 | 72.9 | 166 | 567 | 70 | 400 |
| 58 | 586 | 399 | 72.8 | 73.2 | 184 | 580 | 70 | 402 |
| 60 | 604 | 404 | 72.5 | 73.4 | 202 | 594 | 70 | 402 |
All measurements in millimetres unless marked (°) for angles.
