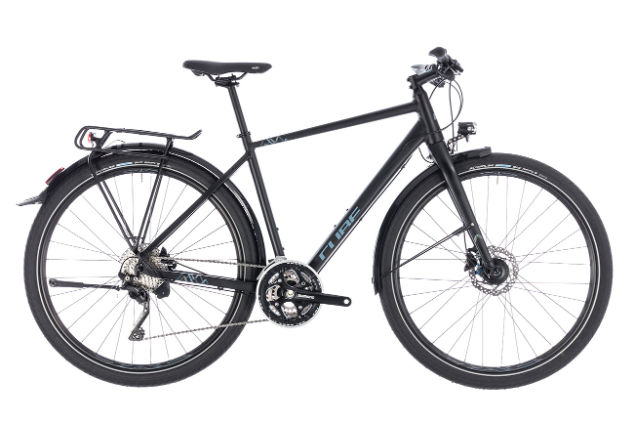

2018 Cube Travel geometry
Full frame geometry for the 2018 Cube Travel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 575 | 392 | 74.5 | 69 | 115 | 551 | 440 | 70 | 470 | 1098 |
| 50 | 598 | 394 | 74 | 70 | 135 | 565 | 480 | 70 | 470 | 1098 |
| 54 | 621 | 396 | 73.5 | 71 | 155 | 580 | 520 | 70 | 470 | 1098 |
| 58 | 640 | 399 | 73 | 71 | 175 | 595 | 560 | 70 | 470 | 1108 |
| 62 | 663 | 420 | 73 | 71 | 200 | 605 | 600 | 70 | 470 | 1119 |
All measurements in millimetres unless marked (°) for angles.
