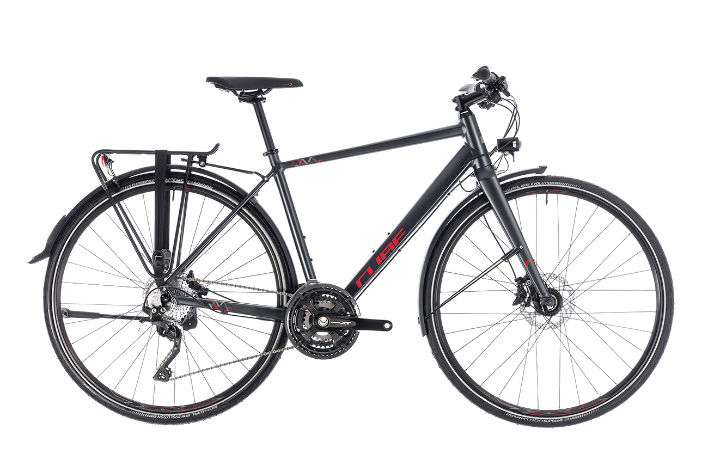

2018 Cube Travel Sport geometry
Full frame geometry for the 2018 Cube Travel Sport, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 534 | 389 | 74 | 70.5 | 125 | 542 | 460 | 60 | 430 | 1030 |
| 53 | 557 | 396 | 73 | 71.5 | 145 | 566 | 490 | 60 | 430 | 1035 |
| 56 | 573 | 399 | 73 | 72 | 160 | 574 | 520 | 60 | 430 | 1039 |
| 59 | 597 | 411 | 73 | 72 | 185 | 593 | 550 | 60 | 430 | 1058 |
| 62 | 626 | 421 | 73 | 72 | 215 | 612 | 580 | 60 | 430 | 1078 |
All measurements in millimetres unless marked (°) for angles.
