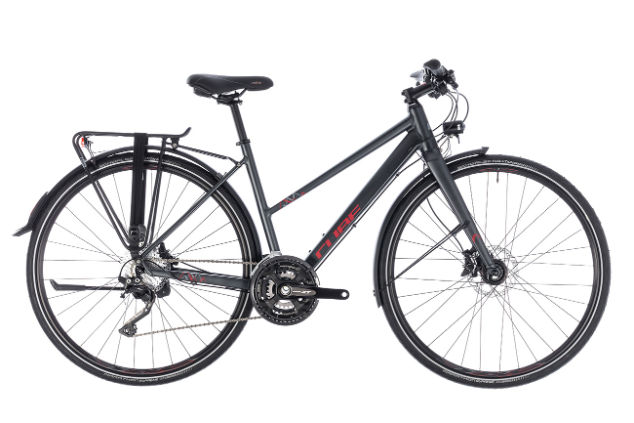

2018 Cube Travel Sport Womens geometry
Full frame geometry for the 2018 Cube Travel Sport Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 528 | 376 | 75 | 70 | 120 | 517 | 430 | 60 | 430 | 1020 |
| 50 | 539 | 388 | 74.5 | 70.5 | 130 | 537 | 460 | 60 | 430 | 1031 |
| 53 | 562 | 405 | 74 | 71.5 | 150 | 561 | 490 | 60 | 430 | 1046 |
All measurements in millimetres unless marked (°) for angles.
