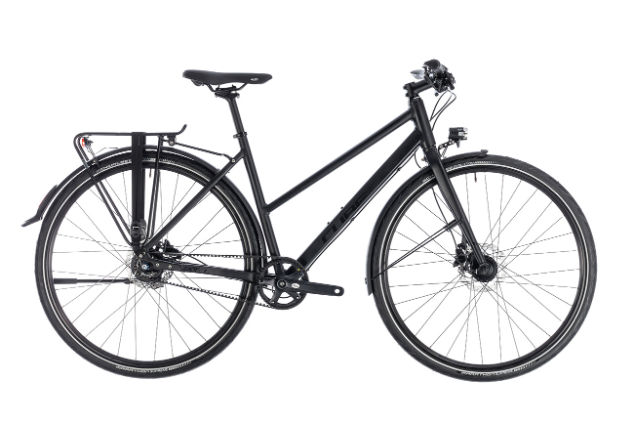

2018 Cube Travel SL Womens geometry
Full frame geometry for the 2018 Cube Travel SL Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 547 | 393 | 73 | 70 | 125 | 560 | 440 | 50 | 425 | 1052 |
| 50 | 565 | 397 | 73 | 71 | 140 | 570 | 480 | 50 | 425 | 1053 |
| 54 | 587 | 406 | 73 | 72 | 160 | 586 | 520 | 50 | 425 | 1059 |
All measurements in millimetres unless marked (°) for angles.
