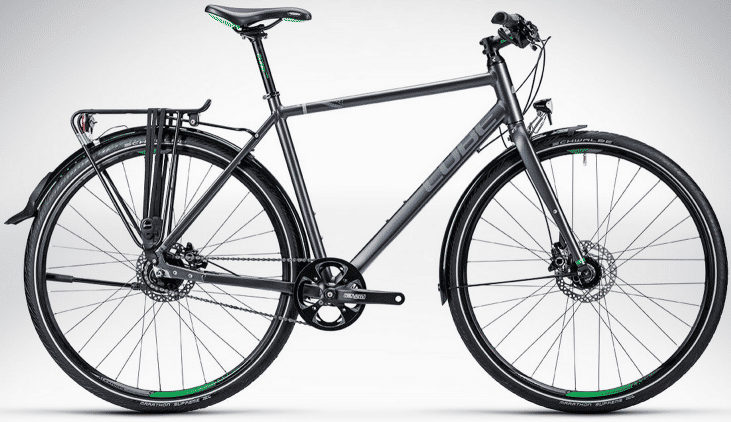

2014 Cube Travel RF geometry
Full frame geometry for the 2014 Cube Travel RF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 534 | 397 | 73 | 70 | 115 | 560 | 440 | 50 | 425 | 1051 |
| 50 | 551 | 401 | 73 | 71 | 130 | 570 | 480 | 50 | 425 | 1052 |
| 54 | 574 | 410 | 73 | 72 | 150 | 586 | 520 | 50 | 425 | 1059 |
| 58 | 593 | 415 | 73 | 72 | 170 | 596 | 560 | 50 | 425 | 1069 |
| 62 | 612 | 420 | 73 | 72 | 190 | 607 | 600 | 50 | 425 | 1080 |
All measurements in millimetres unless marked (°) for angles.
