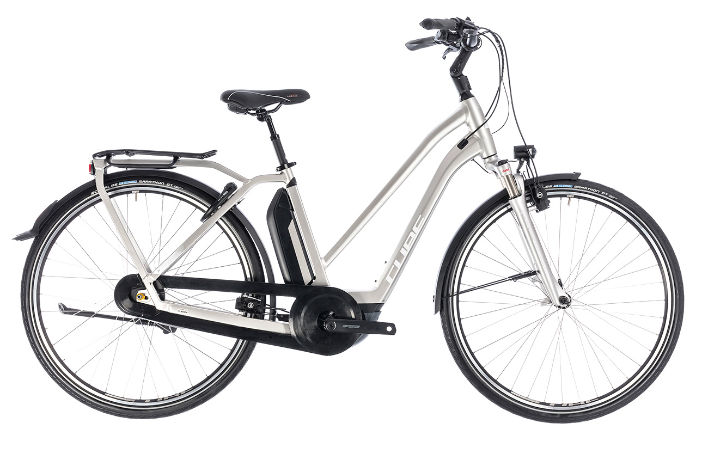

2018 Cube Town Hybrid Womens geometry
Full frame geometry for the 2018 Cube Town Hybrid Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 641 | 386 | 72 | 70 | 165 | 593 | 465 | 70 | 540 | 1174 |
| 50 | 651 | 395 | 72 | 70 | 175 | 605 | 480 | 70 | 540 | 1186 |
| 54 | 665 | 402 | 72 | 70 | 190 | 617 | 520 | 70 | 540 | 1198 |
All measurements in millimetres unless marked (°) for angles.
