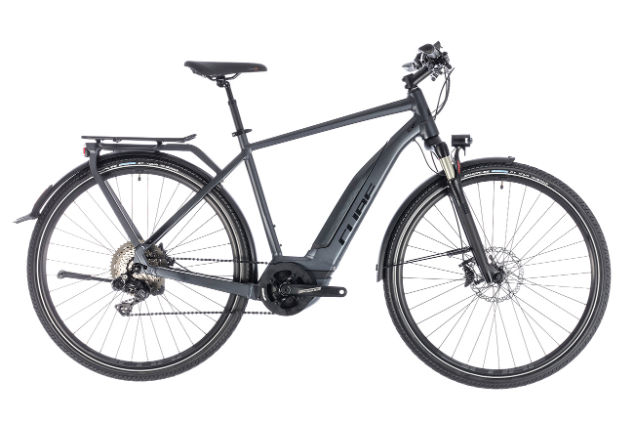

2018 Cube Touring Hybrid geometry
Full frame geometry for the 2018 Cube Touring Hybrid, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 608 | 369 | 73 | 69.5 | 130 | 582 | 480 | 829 | 60 | 470 | 1112 |
| 54 | 629 | 401 | 73 | 70 | 150 | 593 | 520 | 860 | 60 | 470 | 1118 |
| 58 | 647 | 406 | 73 | 70 | 170 | 604 | 560 | 890 | 60 | 470 | 1130 |
| 62 | 666 | 411 | 73 | 70 | 190 | 615 | 600 | 921 | 60 | 470 | 1143 |
All measurements in millimetres unless marked (°) for angles.
