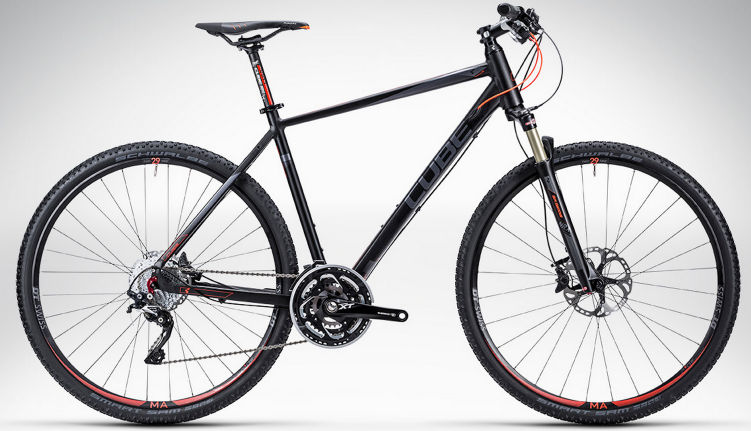

2014 Cube Tonopah geometry
Full frame geometry for the 2014 Cube Tonopah, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 599 | 387 | 73 | 71 | 105 | 570 | 440 | 55 | 440 | 1051 |
| 50 | 613 | 398 | 73 | 71 | 120 | 585 | 480 | 55 | 440 | 1067 |
| 54 | 632 | 408 | 73 | 71 | 140 | 601 | 520 | 55 | 440 | 1083 |
| 58 | 646 | 413 | 73 | 71 | 155 | 611 | 560 | 55 | 440 | 1094 |
| 62 | 661 | 426 | 73 | 71 | 170 | 628 | 600 | 55 | 440 | 1111 |
All measurements in millimetres unless marked (°) for angles.
