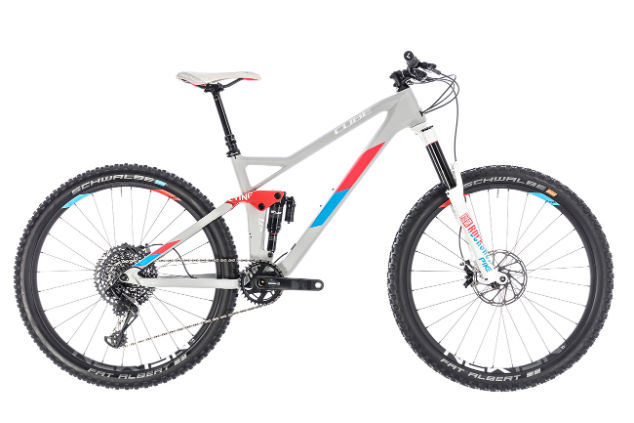

2018 Cube Sting WS 140 HPC geometry
Full frame geometry for the 2018 Cube Sting WS 140 HPC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 587 | 398 | 75.2 | 66.5 | 102 | 546 | 350 | 16 | 425 | 1119 |
| 16 | 592 | 418 | 75.2 | 66.5 | 107 | 568 | 370 | 16 | 425 | 1141 |
| 18 | 601 | 438 | 75.2 | 66.5 | 117 | 591 | 420 | 16 | 425 | 1165 |
All measurements in millimetres unless marked (°) for angles.
