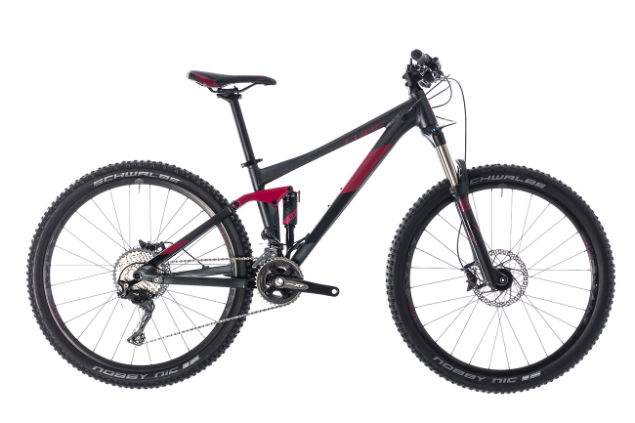

2018 Cube Sting WS 120 geometry
Full frame geometry for the 2018 Cube Sting WS 120, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 577 | 392 | 74.7 | 68.5 | 105 | 546 | 335 | 20 | 428 | 1086 |
| 16 | 581 | 411 | 74.7 | 68.5 | 110 | 566 | 375 | 20 | 428 | 1107 |
| 17 | 613 | 419 | 75.2 | 68.5 | 110 | 576 | 395 | 42 | 446 | 1143 |
| 19 | 623 | 435 | 75.2 | 68.5 | 120 | 595 | 445 | 42 | 446 | 1163 |
All measurements in millimetres unless marked (°) for angles.
