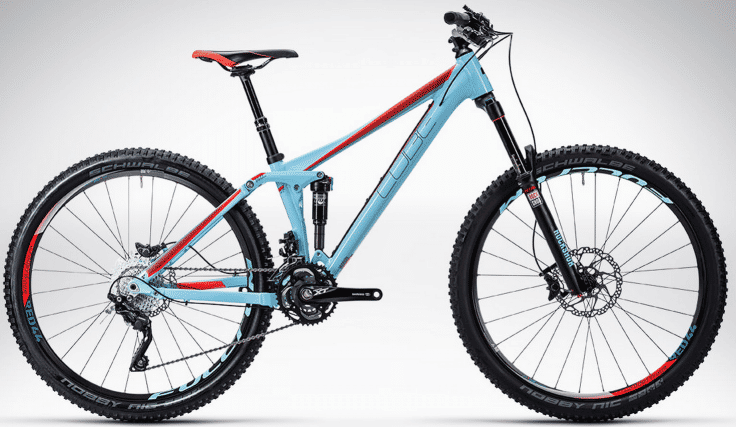

2014 Cube Sting WLS 140 27.5 geometry
Full frame geometry for the 2014 Cube Sting WLS 140 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 586 | 392 | 74.5 | 67.5 | 105 | 550 | 350 | 16 | 435 | 1111 |
| 16 | 591 | 411 | 74.5 | 67.5 | 110 | 570 | 360 | 16 | 435 | 1132 |
| 18 | 600 | 428 | 74.5 | 67.5 | 120 | 590 | 400 | 16 | 435 | 1153 |
All measurements in millimetres unless marked (°) for angles.
