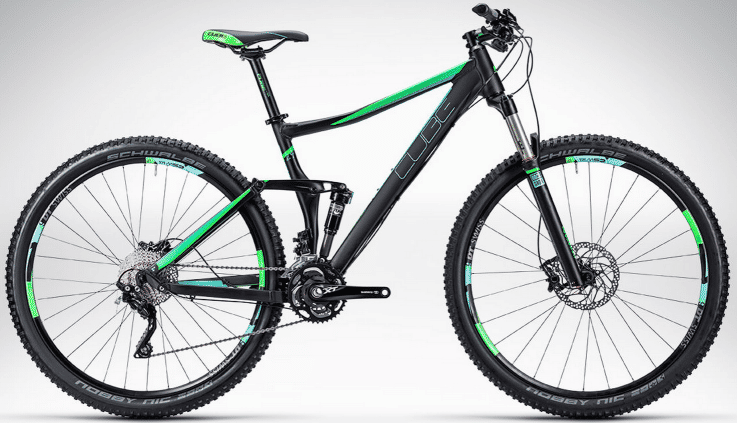

2014 Cube Sting WLS 120 geometry
Full frame geometry for the 2014 Cube Sting WLS 120, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 567 | 390 | 74.5 | 67.5 | 100 | 544 | 375 | 20 | 442 | 1106 |
| 15 | 574 | 399 | 74.5 | 68 | 105 | 555 | 403 | 20 | 442 | 1112 |
| 18 | 611 | 403 | 74.5 | 69 | 110 | 566 | 431 | 38 | 452 | 1128 |
All measurements in millimetres unless marked (°) for angles.
