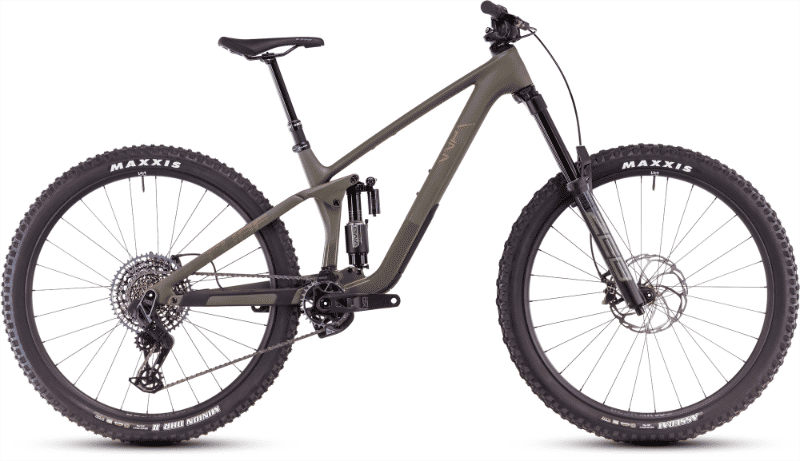

2026 Cube Stereo One77 C:68X geometry
Full frame geometry for the 2026 Cube Stereo One77 C:68X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 626 | 452 | 76.7 | 63.8 | 103 | 589 | 405 | 743 | 27 | 435 | 1229 |
| L | 627 | 472 | 76.7 | 63.8 | 105 | 610 | 420 | 740 | 27 | 435 | 1250 |
| XL | 636 | 492 | 76.7 | 63.8 | 115 | 633 | 470 | 766 | 27 | 435 | 1274 |
| XXL | 654 | 512 | 76.7 | 63.8 | 135 | 659 | 470 | 767 | 27 | 435 | 1297 |
All measurements in millimetres unless marked (°) for angles.
