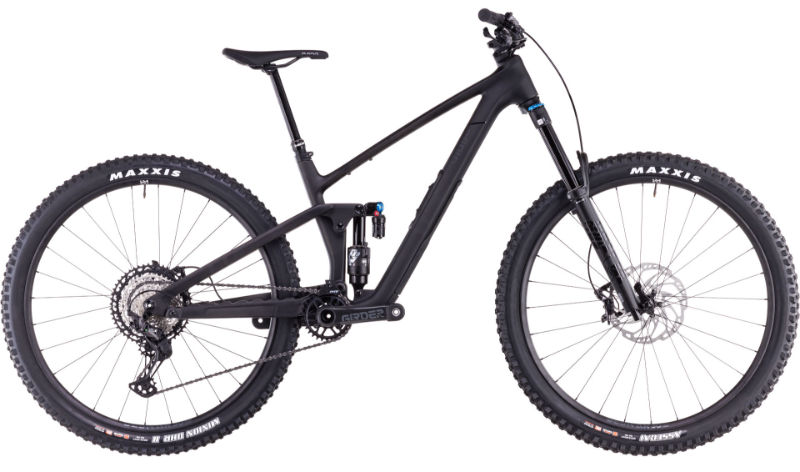

2026 Cube Stereo One55 C:62 geometry
Full frame geometry for the 2026 Cube Stereo One55 C:62, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 623 | 427 | 76.7 | 64.2 | 100 | 565 | 370 | 735 | 36 | 438 | 1196 |
| M | 625 | 452 | 76.5 | 64.2 | 103 | 591 | 405 | 744 | 36 | 438 | 1222 |
| L | 634 | 477 | 76.7 | 64.2 | 113 | 619 | 420 | 742 | 36 | 438 | 1252 |
| XL | 652 | 502 | 76.7 | 64.2 | 133 | 650 | 470 | 777 | 36 | 438 | 1285 |
All measurements in millimetres unless marked (°) for angles.
