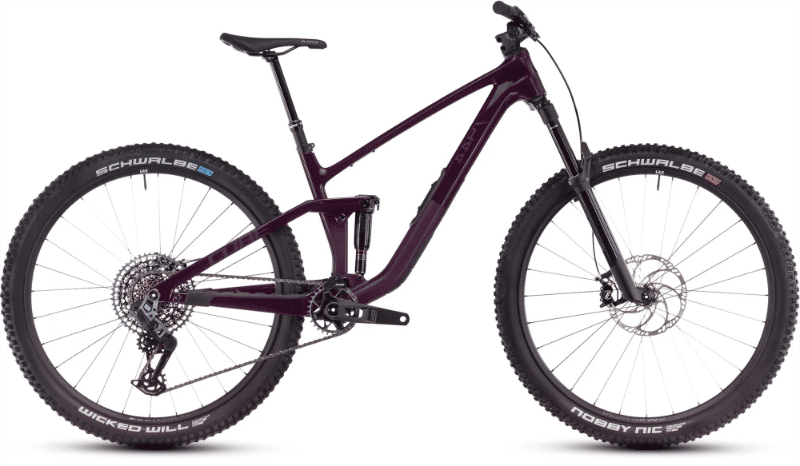

2026 Cube Stereo One44 C:68X geometry
Full frame geometry for the 2026 Cube Stereo One44 C:68X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 615 | 429 | 75.9 | 65.4 | 103 | 575 | 370 | 34 | 434 | 1177 |
| M | 624 | 449 | 75.9 | 65.4 | 113 | 599 | 405 | 33 | 434 | 1201 |
| L | 633 | 474 | 75.9 | 65.4 | 123 | 627 | 420 | 33 | 434 | 1230 |
| XL | 651 | 502 | 75.9 | 65.4 | 143 | 660 | 470 | 33 | 434 | 1266 |
All measurements in millimetres unless marked (°) for angles.
