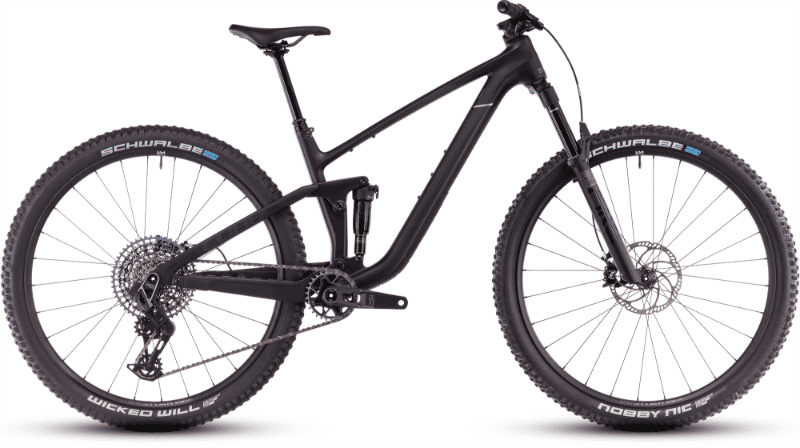

2026 Cube Stereo One22 C:62 geometry
Full frame geometry for the 2026 Cube Stereo One22 C:62, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 603 | 427 | 76.2 | 65.4 | 90 | 566 | 370 | 41 | 431 | 1161 |
| M | 612 | 452 | 76.2 | 65.4 | 100 | 594 | 405 | 41 | 431 | 1190 |
| L | 621 | 477 | 76.2 | 65.4 | 110 | 622 | 420 | 41 | 431 | 1219 |
| XL | 639 | 502 | 76.2 | 65.4 | 130 | 653 | 470 | 41 | 431 | 1253 |
All measurements in millimetres unless marked (°) for angles.
